GENERATOR OPERATED RELAY

  • Dynalec Part No.
  • USI - Stromberg Type
  • Navy Symbol
  • Military Designation
  • National Stock Number
  • Dimensions

  • Weight
  • 702019-435
  • A537
  • -
  • -
  • 5945-00-506-2315
  • 4.1” H x 4.1” D x 3.75” D
  • 1.75 lbs.

Description

  • Weatherproof brass case
  • SPDT relay
  • Operating voltage: 7.6 VDC
  • 980 ohms coil resistance
  • 7.2 ma coil current, nominal; 4 ma, holding current
  • Contact rating: 5 A @ 28VDC and 120 VAC

Related Equipment

  • Visual Signal Device, white globe: 701021-250
  • Visual Signal Device, red globe: 65002-401
















back to top

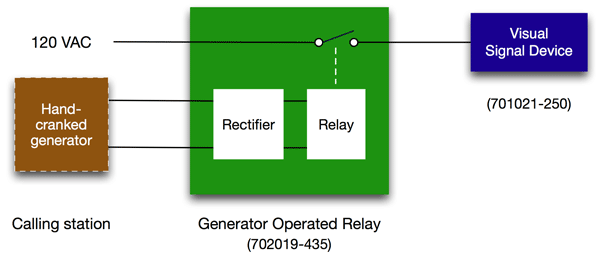

Application Diagram

extension signal relay

Outline Drawing

generator operated relay

back to top

EXTENSION SIGNAL RELAY


  • Dynalec Part No.
  • USI - Stromberg Type
  • Navy Symbol
  • Military Designation
  • National Stock Number
  • Dimensions

  • Weight
  • 701021-478
  • -
  • -
  • J-3523/WTC-2(V)
  • 5945-01-120-8951
  • 6.38” H x 4.38” W x 3.88” D
  • 3.2 lbs

Description



Related Equipment



Outline Drawing

extension signal relay
