JACK PANEL MOUNT WITH FLANGE

jack panel mount flange sound poweredjack panel mount flange sound powered
  • Dynalec Part No.
  • USI - Stromberg Type
  • Navy Symbol
  • Military Designation
  • National Stock Number
  • Dimensions

  • Weight
  • 65002-004
  • UA1076
  • -
  • H-27A
  • 5935-00-254-9192
  • 1.59” H x 1.59” W x 1.72” D
  • 2.5 ounces

Description

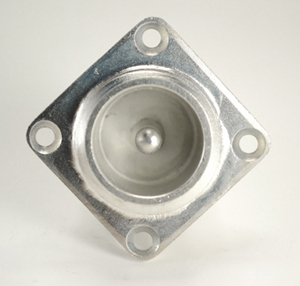

  • Rectangular, brass, 4-point mounting plate
  • Brass body
  • Insulation block
  • Mates with:
  • 702004-232: UA1000 / H-39A handset/headset plug
  • 702004-234: A529 portable plug

Related Equipment

  • Mating cap – 65002-033: with lanyard




































Outline Drawing

jack panel flange

back to top



JACK– PANEL MOUNT

jack panel mount sound powered
  • Dynalec Part No.
  • USI - Stromberg Type
  • Navy Symbol
  • Military Designation
  • National Stock Number
  • Dimensions

  • Weight
  • 702003-448
  • UA999
  • -
  • H-25A
  • 5935-00-258-8947
  • 1.26” H x 1.26”D x 1.72” D
  • 2.5 ounces

Description

  • For panel mounting
  • Brass body
  • Insulation block
  • Mates with:
  • 702004-232: UA1000 / H-39A handset/headset plug
  • 702004-234: A529 portable plug

Related Equipment

  • Mating cap – 65002-033: with lanyard
















Outline Drawing

jack panel outline

back to top

JACK– PORTABLE

jack panel flange sound powered
  • Dynalec Part No.
  • USI - Stromberg Type
  • Navy Symbol
  • Military Designation
  • National Stock Number
  • Dimensions

  • Weight
  • 702003-453
  • A689
  • -
  • H-27B
  • 5935-01-137-1321
  • 1.59” D x 1.59” W x 2.94” D
  • 5 ounces

Description

  • Portable
  • Watertight neoprene panel gasket (65002-034)
  • Mates with:
  • 702004-232: UA1000 / H-39A handset/headset plug
  • 702004-234: A529 portable plug UA1000 / H-39A / A529 plugs

Related Equipment

  • Mating cap – 65002-033: with lanyard















Outline Drawing

702003-453

back to top

PLUG– PORTABLE

plug portable sound powered
  • Dynalec Part No.
  • USI - Stromberg Type
  • Navy Symbol
  • Military Designation
  • National Stock Number
  • Dimensions
  • Weight
  • 702004-234
  • A529
  • -
  • -
  • 5935-00-778-0832
  • 1.375” dia. x 2.4” D
  • -

Description

  • Use with 1/4" to 5/16 diameter cords.
  • Mates with:
  • 65002-004: UA1076, H-27A panel mount jacks
  • 702003-448: UA999, H-25A panel mount jacks
  • 702003-453: A689 portable jack


















Outline Drawing

702004-234_large

back to top

PLUG– PORTABLE

plug portable sound powered
  • Dynalec Part No.
  • USI - Stromberg Type
  • Navy Symbol
  • Military Designation
  • National Stock Number
  • Dimensions
  • Weight
  • 702004-232
  • UA1000
  • 2922
  • H-39A
  • 5935-00-254-9287
  • 1.375” dia. x 2.4” D
  • -

Description

  • Use with 5/16 diameter cords.
  • Mates with:
  • 65002-004: UA1076, H-27A panel mount jacks
  • 702003-448: UA999, H-25A panel mount jacks
  • 702003-453: A689 portable jack


















Outline Drawing
